Competitive Price of Incoloy 825 SR Elbow, Largest Stockholder of Nickel Alloy 825 Pipe Fittings in India, Incoloy WPNICMC Pipe Elbow Trader, Incoloy Alloy 825 Equal Tee, Ready Stock of NiCr21Mo Incoloy® Alloy Buttweld Elbow, ASTM B366 825 Buttweld Fittings Manufacturers in Mumbai, India.

We Kalikund Steel & Engg. Co. is one of the best industry that is leading on the top as a reliable manufacturer, supplier, and exporter of the excellent quality of Incoloy 825 Buttweld Fittings that are manufactured using the high quality of alloy. We are providing these Incoloy 825 Fittings to our buyers in different specifications, standards, sizes, types, etc. Also, it is offered to our buyers at cut-made specifications as per the demands and requirements of our esteemed buyers are having. Incoloy 825 Buttweld Fittings are the non-magnetic nickel-based high-temperature Incoloy Fittings that is having excellent features to offer.

These Incoloy 825 Buttweld Fittings, which we Kalikund Steel & Engg. Co. manufactures are the chromium, nickel, and iron-based alloy with the addition of alloying elements like copper, titanium, and molybdenum. This alloy chemical composition is developed in order to provide excellent resistance to several corrosive atmospheres. It has the well enhanced aqueous corrosion-resistant ability. It is having resistance ability against reducing and oxidizing acids, stresses corrosion cracking, and pitting, and crevice corrosion. This alloy is resistant to the sulfuric as well as phosphoric acid. That is why these Incoloy 825 Buttweld Fittings are used in many applications like pollution control tools, gas, oil piping, and many more.

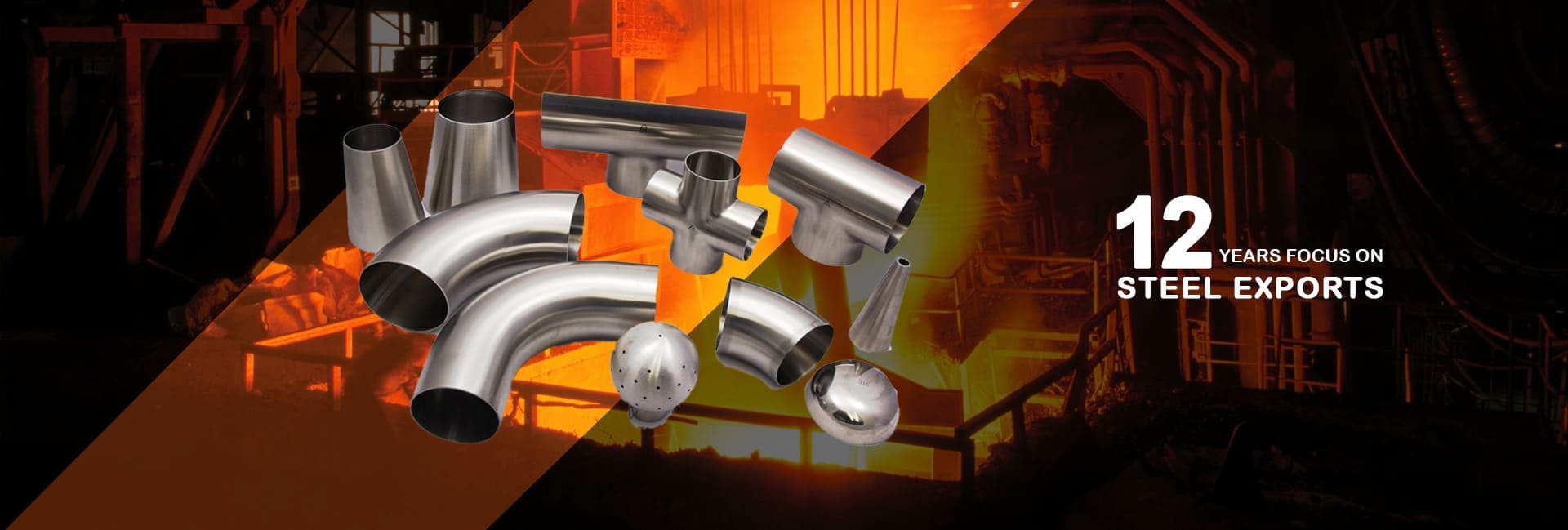

Incoloy 825 Buttweld Pipe Fittings

Incoloy 2.4858 Buttweld Cross Wholesaler, Grade 825 Incoloy Alloy Butt weld Pipe Fittings Dealer, Incoloy Alloy 825 Buttweld Pipe Bend, 825 Incoloy Alloy Dish Cap, Buy Incoloy UNS N08825 Butt weld Reducer, Alloy 825 Two Joint Pipe Fittings, 825 Incoloy® Alloy Buttweld Pipe Fittings Stockist, ASME SB366 825 Collar Pipe Fittings, ANSI B16.9 825 Incoloy Alloy Buttweld Pipe Cap, NA 16 Incoloy Long Stub End Supplier in Mumbai, India.

Our highest quality Incoloy 825 Buttweld Fittings are having many excellent features to offer that is responsible for making these 825 Fittings high in demand. Few of them are listed below are as follows- Resistance to oxidizing and reducing acids, Resistance to stress corrosion cracking, resistance to attacks like crevice corrosion and pitting, resistance to phosphoric and sulfuric acid, Excellent mechanical properties at room and elevated temperature, Long-lastingness and holds high pressure, Anti-corrosive body and much more.

We, Kalikund Steel & Engg. Co. is having experienced and skilled employees in our organization. Our employees do check the quality standards of these Incoloy 825 Buttweld Fittings at the time of the manufacturing process to make sure that no poor quality of 825 Buttweld Fittings is manufactured and delivered to our well-regarded clients. Our experts also conduct several other tests, and these tests do not let us send the poor quality of these Incoloy 825 Fittings to our buyers. Before the delivery of these Incoloy 825 Buttweld Fittings to our clients, we perform the various destructive and non-destructive tests and pack it properly, and then make on-time delivery of these Fittings to our clients.


Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015 Certified

Incoloy 825 Buttweld Fittings Specification

825 Pipe Fittings Specifications ASTM B366/ ASME SB366
825 Incoloy Alloy Pipe Fittings size 825 Seamless Butt Weld Fittings : 1/2" - 10"
825 Welded Butt Weld Fittings : 1/2" - 48"
Alloy 825 Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Incoloy 825 Buttweld Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
825 Buttweld Pipe FittingsType DN15-DN1200
ASTM B366 825 Buttweld Fitting Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Grade 825 Pipe Fitting
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 825 Buttweld Fitting
ASTM B366 825 Buttweld Fittings Manufacturing process Push, Press, Forge, Cast, etc.
825 Incoloy Buttweld Pipe Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
SA 366 825 Pipe Fittings Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of Alloy UNS N08825, N08825 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Incoloy 825 Butt weld Pipe Fittings can be supplied in either seamless or welded construction and are covered by specification ASTM B366 and ASME B16.9.

Manufacturing Standards of Incoloy 825 Buttweld Fittings

ASME B16.9 ASTM B366 825 Pipe Fittings Factory-Made Wrought Buttwelding Fittings Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28   Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
Mss SP75   Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers
ANSI B16.9 Incoloy 825 Buttweld Fittings Forms & Availability

Seamless/ Welded 100% Radiography Tested

Products Size
ASTM B366 825 Incoloy Alloy Elbow – Long Radius ASTM B366 825 Incoloy Alloy Stub Ends Sizes 1/2″ – 48″
ASTM B366 825 Incoloy Alloy Elbow – Short Radius ASTM B366 825 Incoloy Cross
ASTM B366 825 Alloy 3D Elbow ASTM B366 825 Incoloy Alloy 5D Elbow
ASTM B366 825 Incoloy Alloy Reducing Elbow ASTM B366 825 Incoloy Alloy Reducing Cross
ASTM B366 825 Alloy 45° Elbow ASTM B366 825 Alloy Tees
ASTM B366 825 Incoloy Alloy Fabricated Tee ASTM B366 825 Alloy End Cap
ASTM B366 825 Alloy Reducer ASTM B366 825 Alloy Coupling
ASTM B366 825 Incoloy Alloy Concentric Reducer ASTM B366 825 Incoloy Alloy Eccentric Reducer
ASTM B366 825 Incoloy Alloy Pipe Nipple ASTM B366 825 Incoloy Alloy Welded Pipe Fittings

Incoloy 825 Pipe Fittings has the following advantages :
  • Good general corrosion resistance and high strength
  • Good sulfide stress corrosion resistance
  • Resistance to chloride pitting and crevice corrosion
  • Higher resistance to chloride stress corrosion cracking
  • Easy to weld and conform
Some of Our Specialities that make us a profitable Business Partner for our clients are :
  • Customer focused approach
  • Superior quality products
  • Timely deliverices
  • Customize Size & Specification
  • Competitive Pricing
Kalikund Steel
Stock Availability of ASME SA 366 Incoloy 825 Pipe Fittings
Preview Products UNS DIN
Incoloy 825 Elbow Incoloy 825 Elbow UNS N08825 Elbow 2.4858 Elbow
Incoloy 825 Tee Incoloy 825 Tee UNS N08825 Tee 2.4858 Tee
Incoloy 825 Cross Incoloy 825 Cross UNS N08825 Cross 2.4858 Cross
Incoloy 825 Reducer Incoloy 825 Reducer UNS N08825 Reducer 2.4858 Reducer
Incoloy 825 Stub End Incoloy 825 Stub End UNS N08825 Stub End 2.4858 Stub End
Equivalent Grades Incoloy 825 Buttweld Pipe Fittings
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT
Chemical Composition of Incoloy 825 Buttweld Fittings
Grade C Mn Si S Cu Fe Ni Cr Al Ti
825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20
Mechanical Properties of Incoloy B366 825 Butt weld Pipe Fittings
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
Kalikund Steel
ASTM B366 825 Pipe Fitting Classes for Grades

CR : Corrosion resistant grade. S through WU Classes do not apply.

825-S : Seamless

825-W : Welded, Weldable, RT or UT all pipe starting material welds made with filler metal. All fitting manufacturer welds except as excluded in A/SB366 paragraph 5.4.3.
If UT is substituted for RT, all welds must be examined 100% for their length as required by A/SB366 paragraph 5.6

825-WX : RT all welds with or without filler metal.

825-WU : UT all welds with or without filler metal.

grade-grade-class : Insert grades (825-825) and class (S,W,WX, or WU). Applies to fittings meeting all chemical and physical requirements of both grades.


Incoloy 825 Buttweld Pipe Fittings Production Range
Incoloy 825 Butt weld Elbow
Incoloy 825 Butt weld Tee
Incoloy 825 Butt weld Cross
Incoloy 825 Butt weld Reducer
Incoloy 825 Butt weld Pipe Cap
Incoloy 825 Butt weld Pipe Bend
Incoloy 825 Butt weld Stub End
Incoloy 825 Butt weld Lateral Tee
Incoloy 825 Butt weld Pipe Nipple
Kalikund Steel
Incoloy 825 Buttweld Fittings Standard
American Steel Pipe Fittings Standard
Standard Code Standard Name
ANSI ASME SA-366 Forged Durimet pipe fittings
ANSI ASME B16.9 Factory-Made wrought steel pipe fittings
ANSI ASME B16.28 Wrought steel butt-welding short radius elbows and returns
ISO 5251 Incoloy butt-welding fittings
MSS SP-43 Wrought Incoloy butt-welding fittings
MSS SP-75 Forging butt-welding fittings
German Steel Pipe Fittings Standard
DIN 2605 Steel butt-welding pipe fittings.elbows and bends
DIN 2615 Steel butt-welding pipe fittings.tees
DIN 2616 Steel butt-welding pipe fittings.reducers
DIN 2617 Steel butt-welding pipe fittings.caps
Japanese Steel Pipe Fittings Standard
JIS B2311 Universal steel butt-welding pipe fittings
JIS B2312 Steel butt-welding pipe fittings
JIS B2313 Steel plate butt-welding pipe fittings
Other Steel Pipe Fittings Standard
EN 1025 3 Butt-welding pipe fittings
Price List of ANSI B16.9 Incoloy 825 Buttweld Pipe Fittings

Prices for Alloy 825 Pipe Fittings Products are very affordable.
Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. KALIKUND STEEL & ENGG. CO. maintains a stock of all standard items and can export them at the best price ASME SA 366 825 Incoloy Pipe Fittings, Buttweld Elbow, Reducer, Tee, Cross, Stub End, Pipe Bend, Seamless Pipe Fittings, Weldable, Welded Pipe Fittings etc.


Incoloy 825 Butt weld Pipe Fittings Ready Stock in India
Incoloy 825 90° LR Elbow 825 Incoloy Seamless Pipe Fittings
Incoloy 825 90° Weldable SR Elbow Alloy UNS N08825 Pipe Reducers
ASME B16.9 Incoloy 825 90° Reducing Elbow 825 Nickel Alloy Welded Pipe Fittings
MSS SP-43 Incoloy 825 Stub End ASTM B366 825 Incoloy Caps
Incoloy NA 16 Pipe Fittings Supplier B366 825 Two Joint Pipe Fittings
ASTM B366 Incoloy 825 Reducing Tee ASTM B366 825 Lateral Tee Supplier
Sch 10 Incoloy 825 Concentric Reducer Incoloy® Alloy 825 Welded Pipe Fittings Dealer
Sch 80 Nickel Alloy 825 Eccentric Reducer B366 Grade 825 Industrial Buttweld Pipe Fittings
ANSI B16.9 Incoloy 825 Pipe Cap UNS N08825 Incoloy Weldable 3D Elbow
825 Incoloy 180° Buttweld Elbow Alloy 825 Lap Joint Stub Ends Stockists
ASTM B366 Gr 825 45° Long Radius Elbow Incoloy 2.4858 Incoloy Alloy Short Radius Elbow Exporter
B366 Grade 825 Pipe Bends ASTM B366 825 Incoloy Pipe Elbow
825 Incoloy 180° LR Return Bend 825 Incoloy® Alloy Seamless Reducing Tee
825 Nickel Alloy Seamless Fittings Incoloy 825 1D Elbow/3D Elbow/5D Elbow
Incoloy 825 Weldable 1.5D Elbow 825 Incoloy Alloy Two Halve Butt weld Fittings
Incoloy 2.4858 Stub End Exporter 1 Inch Incoloy 825 Buttweld Pipe Fittings
6 Inch Incoloy Alloy 825 Buttweld Pipe Fittings 825 Incoloy Buttweld Reducing Nipple
Incoloy Alloy 825 Seamless Buttweld Fittings Sch 80 Incoloy 825 Pipe Fittings
ASTM B366 Incoloy 825 Eccentric Reducer ASME B16.9 Incoloy NiCr21Mo 10D Elbow
NiCr21Mo Incoloy® Alloy Two Joint Pipe Fittings 825 Incoloy LR Elbow Supplier
Alloy 825 Wrought Austenitic 45 Degree Elbow ASTM B366 825 Welded Pipe Fittings
NiCr21Mo Incoloy Alloy 90° Seamless Elbow Dealer Incoloy 825 Pipe Fittings Stockist
Incoloy 825 Pipe Fittings Supplier in Mumbai Alloy 825 Butt weld Pipe Fittings Manufacturer in India
Incoloy 2.4858 Pipe Fittings Dimensions Incoloy NA 16 Buttweld Reducing Nipple
Wrought Austenitic Incoloy 825 Pipe Fittings ASTM B366 825 Eccentric Reducer at Best Price
Alloy NiCr21Mo Equal Cross Supplier Suppliers of 825 Nickel Alloy End Pipe Cap
Kalikund Steel
ASTM B366 825 Incoloy Pipe Fittings Applications and Uses
